Bamboo Pole Coral Support System
A simple, low-cost restoration system that uses bamboo poles and suspended rope lines to support healthy coral fragments above the seabed while improving water circulation and reducing sediment accumulation.
How Bamboo Pole Coral Support System Works
How It Works

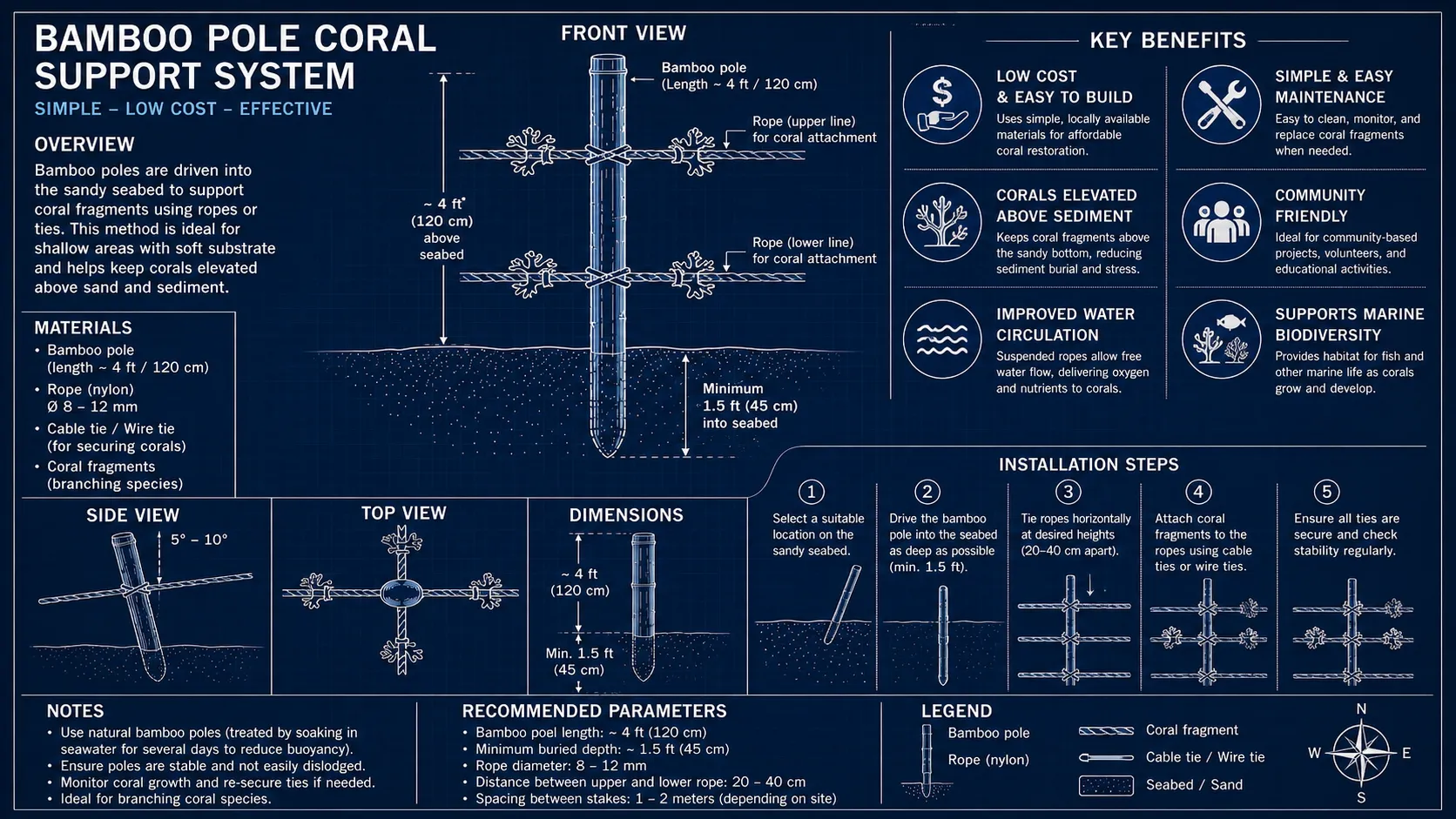

The Bamboo Pole Coral Support System is a simple and cost-effective coral restoration method designed for shallow sandy seabeds. Bamboo poles are securely driven into the substrate, and horizontal rope lines are attached between the poles to suspend healthy coral fragments above the seafloor. This design reduces sediment burial, improves water circulation, and creates a stable environment that promotes coral survival, growth, and long-term reef recovery.
Select a Suitable Site
Soft sandy seabeds allow bamboo poles to be installed securely while minimizing damage to existing reef structures.
Install the Bamboo Pole
Drive each bamboo pole firmly into the seabed until at least 45 cm (1.5 ft) is buried below the sand. The exposed section should remain approximately 120 cm (4 ft) above the seabed to provide sufficient support for the rope lines.
Install the Rope Lines
Secure two horizontal nylon ropes between adjacent bamboo poles. Position the ropes approximately 20–40 cm apart vertically to maximize water flow and provide adequate spacing for coral fragments.
Attach Coral Fragments
Healthy branching coral fragments are attached individually to the ropes using marine-grade cable ties or stainless steel wire. Maintain sufficient spacing between fragments to reduce competition and encourage uniform colony growth.
Technical Specifications
The following specifications summarize the recommended dimensions, materials, installation parameters, and spacing used for the Bamboo Pole Coral Support System.
Bamboo Pole
Treated natural bamboo
Length: 4 ft (120 cm)
Buried Depth
Minimum 1.5 ft (45 cm)
Securely driven into sandy seabed
Rope
Marine-grade nylon rope
Diameter: 8–12 mm
Rope Spacing
Upper and lower ropes
20–40 cm apart.
Coral Attachment
Securely fastens branching coral fragments to the rope lines.
Recommended Pole Spacing
1–2 m
(depending on site conditions)
Key Benefits
The Bamboo Pole Coral Support System is a practical, low-cost coral restoration method that elevates coral fragments above sandy seabeds, improves water circulation, and provides stable growing conditions for long-term reef recovery.
Low Cost
Uses inexpensive and locally available bamboo materials, making it suitable for community-based coral restoration projects.
Easy Installation
Simple construction requires minimal equipment and can be deployed quickly by trained volunteers or divers.
Elevated Coral Growth
Keeping coral fragments above the seabed reduces sediment burial and creates better conditions for healthy coral growth.
Improved Water Circulation
Suspended rope lines allow continuous water movement, improving oxygen exchange while reducing sediment buildup around coral colonies.
Easy Maintenance
Individual coral fragments can be inspected, cleaned, replaced, or repositioned with minimal disturbance.
Scalable Design
The modular layout allows additional bamboo poles and rope lines to be added easily as restoration projects expand.
Community Friendly
Suitable for community-based restoration programs, volunteer activities, educational projects, and citizen science initiatives because of its affordable materials and simple installation.
Supports Marine Biodiversity
As transplanted corals mature, they provide habitat, shelter, and nursery areas for reef fishes, invertebrates, and other marine organisms, strengthening overall reef biodiversity.
